 Post subject: How I refinished and rearrange 907 clutch pack
PostPosted: Wed Jul 02, 2008 5:05 am
Offline
User avatar

Joined: Thu Jun 02, 2005 12:00 am
Posts: 80
Location: Ft. Wayne, Indiana
model: 907 I.E.
year: 1992
Hey Guys,

I was doing my spring tune-up and decided to check on the clutch since it had been barking a little more than normal. This stock clutch has just over 5000 miles on it and the drive plates looked like they needed re-facing. [Last season I had gotten caught in a couple of rain storms and the steal plates had some oxidation.] So, I broke out the scotch-brite wheel and my die grinder and cleaned up all the drive plates and pressure plate. While I was in there I decided to experiment with the clutch pack. I remember not to long ago I had read somewhere on the net about being able to quiet the clutch pack and make its operation smoother by adding another friction plate (or two) to the back of the clutch basket. After trying to locate more detailed info on this I was unsuccessful so I thought I would experiment with the clutch and share my findings with all of you.

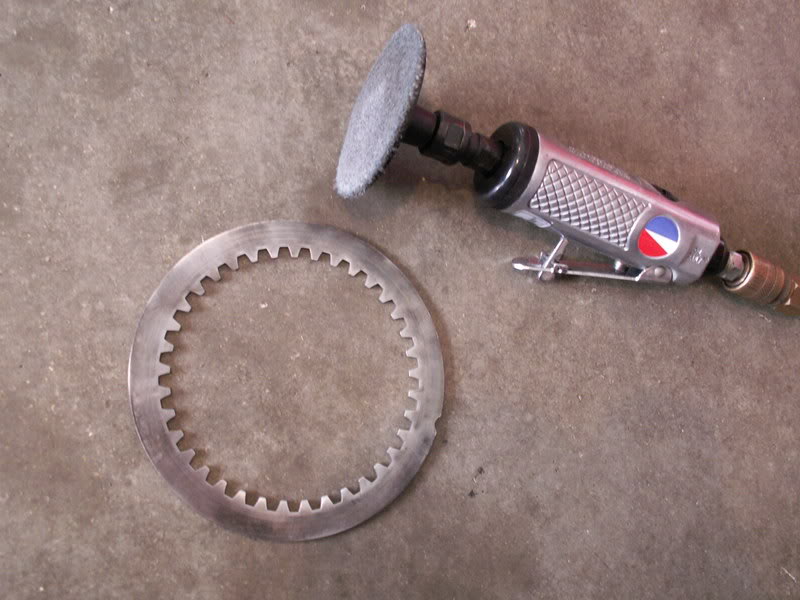

First, the clutch reface R&R of the drive plates is easy to do and seems to help make engagement smoother.

Second, I recorded the order of plate installation as I could not find any reference to the 907ie clutch pack order in any archives or anywhere on the net. Below you will find the exact order of installation and what I found to work extremely well.

Third, I have now put 200 miles on this clutch since I installed it last week and I am blown away by the excellent performance of this new clutch arrangement. The clutch is actually quiet under drive/engagement and only makes its tamburine jingle when the clutch lever is pulled. Excellent engagement with no slipping or groaning.

I have included the following videos for you to see and listen to the clutch update compared to before I did the modification and after.

After: http://s83.photobucket.com/albums/j293/seviston/Duc%20907/Ducati%20Clutch%20Job/?action=view&current=PICT0198.flv

After: http://s83.photobucket.com/albums/j293/seviston/Duc%20907/Ducati%20Clutch%20Job/?action=view&current=PICT0197.flv

Before: http://www.youtube.com/watch?v=n1popG9td1I&feature=related

My clutch kit combination put together from Ducati factory and Barnett plates:

1 Spring plate 1.5mm
8 Drive Plates 2.0mm
7 Friction Disks 3.0mm

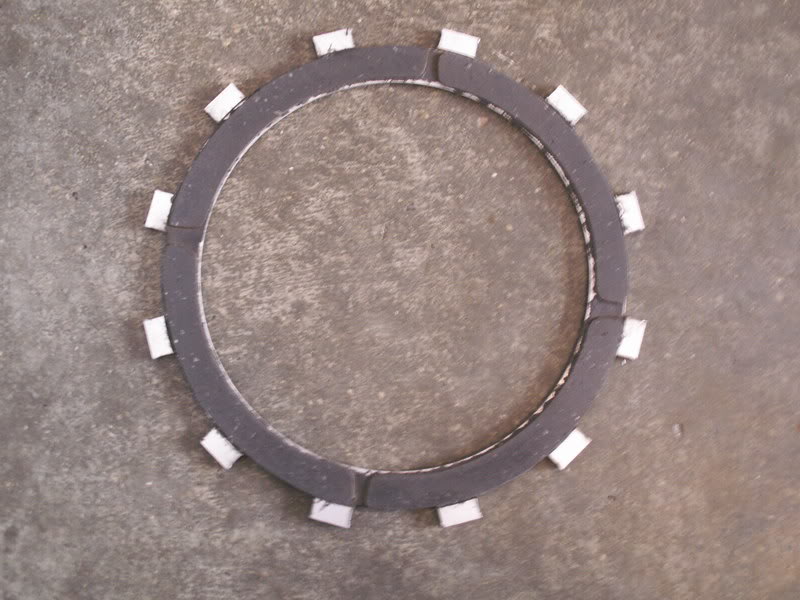

1 additional 3.0mm Barnett FRICTION Disc installed at the back of clutch basket.

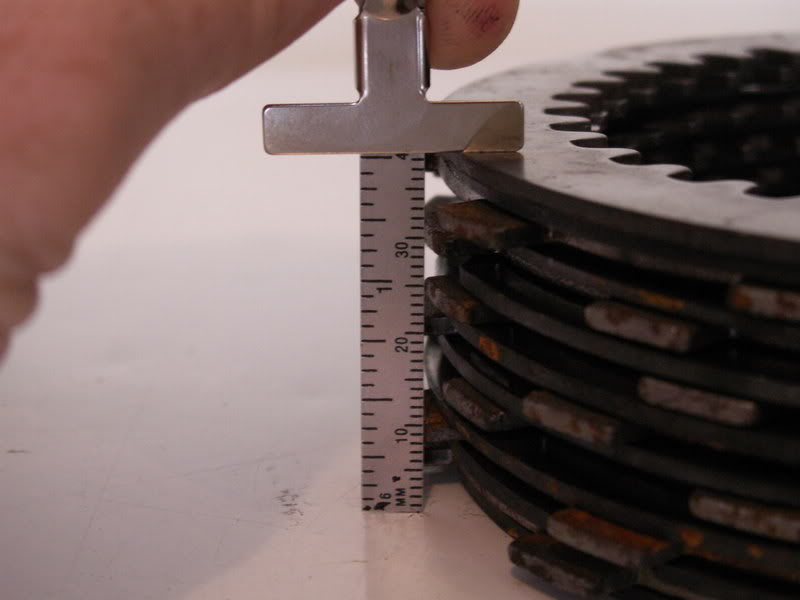

That is a clutch pack of 16 discs that equal about 38.50mm max clutch pack thickness with 1 additional 3.0mm friction disc at the back of clutch basket. *= 17 TOTAL clutch plates*

Order of disks from the back of basket to the front of the clutch pack (clocking each drive plate 1/25 turn using notches) ending at the pressure plate:

1) *Extra Friction Disk at the BACK of basket

2) Drive Plate 12 0’clock

3) Drive Plate 3 0’clock

4) Friction Plate

5) Spring Plate 9 0’clock

6) Friction Plate

7) Drive Plate 12 0’clock

8) Friction Plate

9) Drive Plate 3 0’clock

10) Friction Plate

11) Drive Plate 6 0’clock

12) Friction Plate

13) Drive Plate 9 0’clock

14) Friction Plate

15) Drive Plate 12 0’clock

16) Friction Plate

17) Drive Plate 3 0’clock

Pressure Plate
