 Post subject: Radiator Fan failed due to parts fatigue.
PostPosted: Mon Jan 25, 2016 9:24 pm
Offline
paso grand pooh-bah
User avatar

Joined: Wed Apr 09, 2008 9:57 pm
Posts: 1065
Location: Manchester, England.
model: 907 I.E.
year: 1992

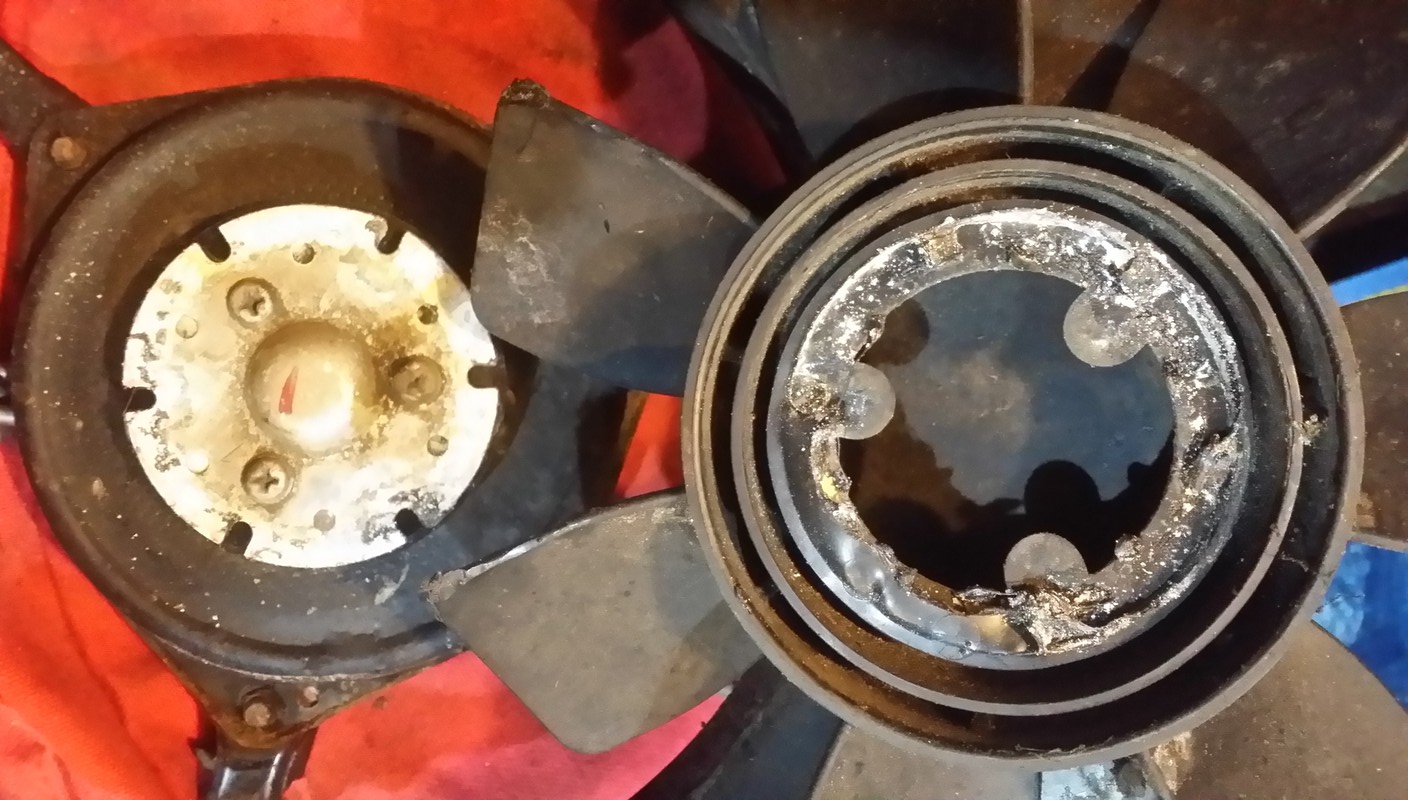

Look what fell off my 907ie today after a 120 mile ride. Fortunately it decided to throw itself off when parked up on my drive at the end of the ride. I would check your fans folks as it seems to be fatigue that caused it.

The actual central spinner shell has come away from the plastic fan housing which has become brittle and then cracked and shattered this caused the fan to drop off the motor housing.

The white paste you can see is just corroded alloy. The actual plastic covering has become brittle and warped and let go. It is essentially the fan housing that has corroded and obviously the hi velocity spinning has caused it to come loose.
I have cleaned it out and had hoped to press it back in and use a two pack resin glue to attach. The aperture has though shrunk so unsuitable. The fan motor is in perfect order. Since I now use waterless coolant the fan does not really activate that much apart from when I come to a standstill for longer than 5 minutes.( normally at the end of a ride).

You can see the three cross head screws that would be holding the fan plate and fan onto the motor.
As a fix you could easily rivet or screw precisely where the three black lugs are on the inner fan plate housing or glue it securely, however as I cannot sit the fan back into the plate housing due to the plastic shrinkage it's a non runner.

Luckily I have a spare which I swapped over.

I now have a spare motor and housing, will be interesting to see if this is interchangeable with any others in the Ducati range.


Attachments:
20160124_215025_zpsewqsqpbs.jpg [245.04 KiB]
Not downloaded yet

_________________
DUCATI 907ie
BMW K100RS PATINA CAFE RACER
Top
 Profile
Reply with quote
 Post subject: Re: Radiator Fan failed due to parts fatigue.
PostPosted: Tue Jan 26, 2016 8:40 am
Offline
User avatar

Joined: Sun Jan 10, 2016 4:13 pm
Posts: 53
Location: Aston Abbotts,Aylesbury,Bucks
model: 907 I.E.
year: 1992
Hi Sti sounds like you were quite lucky it did not cause more damage! I took my 30 year old Benelli for an mot many years ago and the rear brake hose split during the test! I subsequently changed all the hoses and seals it was a lucky escape. My 907ie is 23 years old ,next month or so I will remove the fairing and give it a good check over.

_________________
The Benelliman
1992 907ie
1981 Benelli 900 Sei
1989 Benelli 900 Sei
1976 Benelli 125 Enduro
1981 Benelli 250 2c
1976 Benelli 250 Quattro


Top
 Profile
Reply with quote
 Post subject: Re: Radiator Fan failed due to parts fatigue.
PostPosted: Tue Jan 26, 2016 9:39 am
Offline
paso grand pooh-bah
User avatar

Joined: Thu Nov 03, 2011 10:13 am
Posts: 621
Location: Scotland
model: 907 I.E.
year: 1994
I think the corrosion of the alloy is the root of the problem. It has effectively pushed the plastic housing off of the metal motor housing. I'd think a fan off most of the other Ducati models could be adapted as a replacement.

_________________
1994 907ie
2017 Supersport 939
2015 Scrambler Classic
1982 Pantah 500SL


Scotland


Top
 Profile
Reply with quote
 Post subject: Re: Radiator Fan failed due to parts fatigue.
PostPosted: Wed Jan 27, 2016 5:31 pm
Offline

Joined: Mon Apr 03, 2006 12:00 am
Posts: 371
Location: Northampton UK
model: 907 I.E.
year: 1993
looks like you've had the fan fouling issue on the rev counter cable as well judgung from the blades


Top
 Profile
Reply with quote
 Post subject: Re: Radiator Fan failed due to parts fatigue.
PostPosted: Wed Jan 27, 2016 8:04 pm
Offline
paso grand pooh-bah
User avatar

Joined: Wed Apr 09, 2008 9:57 pm
Posts: 1065
Location: Manchester, England.
model: 907 I.E.
year: 1992
Quote:
looks like you've had the fan fouling issue on the rev counter cable as well judgung from the blades


It would appear so but not in my ownership, when I previously stripped the bike down I noticed this damage and it was pretty old then so think it was most likely as a result of previous accident damage as the Radiator had obviously been replaced.

The bike has spent most of it's early life on the North West English Coast and I had stories passed down to me that two of the previous owner's ( father and his son ) spent many a happy day riding along Blackpool Promenade on the back wheel.

I had fully inspected it before returning it to the bike so I am pretty sure the reason for it's demise is the alloy expansion and brittle heat damaged plastic.

the replacement has come from a 30,000 miler and has no visible signs of damage or decay.

_________________
DUCATI 907ie
BMW K100RS PATINA CAFE RACER


Top
 Profile
Reply with quote
 Post subject: Re: Radiator Fan failed due to parts fatigue.
PostPosted: Wed Jan 27, 2016 8:12 pm
Offline

Joined: Mon Apr 03, 2006 12:00 am
Posts: 371
Location: Northampton UK
model: 907 I.E.
year: 1993
its the rev countr cable - it rubs on certain lock positions (only with the fan running)


Top
 Profile
Reply with quote
 Post subject: Re: Radiator Fan failed due to parts fatigue.
PostPosted: Fri Jan 29, 2016 11:48 pm
Offline
paso grand pooh-bah
User avatar

Joined: Sat Sep 03, 2005 12:00 am
Posts: 1318
Location: SF Bay Area
model: 750 Sport
year: 1990
do you use Simple Green to clean your bike?

The citrus cleaner does a fantastic job of cleaning, but must be rinsed thoroughly, or it will oxidize aluminium bits rather well. It will certainly create the problem you are seeing. That, and the salt air.

Cheers, Phil

_________________
Duc in the Bay
1990 750 Sport x2-Rosso Blanko (900ss copy) & Nuovo Nudo (Scrambler project)
1991 907 -mostly stock
2002 ST4s - Lots of mods.


Top
 Profile
Reply with quote
 Post subject: Re: Radiator Fan failed due to parts fatigue.
PostPosted: Sat Jan 30, 2016 3:45 pm
Offline
paso grand pooh-bah
User avatar

Joined: Wed Apr 09, 2008 9:57 pm
Posts: 1065
Location: Manchester, England.
model: 907 I.E.
year: 1992
Quote:
do you use Simple Green to clean your bike?


Confession time :beer:

As I ride my bikes all year round they tend to be coated in WD40 permanently

It has it's benefits as I have a rather nice one piece Ducati Mechanics overalls set won at a Ducati Rally for having the Ducati ( Monster ) bike requiring the most amount of loving attention which kinda sums up my attitude to washing and polishing my Ducati's and Bikes in general. Believe me when I also say that had I sold all the bling on the other bikes I could of brought another 10 Paso's with the profits so I was a little out of my league.

They are clean and rideable but in no way showroom beauties so my cleaning regime involves little soapy water, a chamois leather and some Auto Solvol on the shiny bits followed by lots of Fish oil ( DON'T SAY IT I KNOW IT'S A MYTH ABOUT WD40 :wacko: ). I do not use any branded bike cleaning products externally if I can help it.

I am pretty certain it's our famous wet salty winter British roads that have caused this problem.

_________________
DUCATI 907ie
BMW K100RS PATINA CAFE RACER


Top
 Profile
Reply with quote
 Post subject: Re: Radiator Fan failed due to parts fatigue.
PostPosted: Sat Jan 30, 2016 5:04 pm
Offline
paso grand pooh-bah
User avatar

Joined: Sat Sep 03, 2005 12:00 am
Posts: 1318
Location: SF Bay Area
model: 750 Sport
year: 1990
WD-40 is a great product, and pretty good at protecting stuff. I always start the cleaning process by spraying the entire bike with WD-40, get lunch or a coffee, then apply Simple Green to dirty bits followed by a strong hose. I don't know what myth there is around WD-40, besides it surely isn't a very good lubricant for very long. it will make a hinge quiet, but only for a short time. needs to be followed with real oil. A bit of WD-40 on that fan hub would have helped it live a bit longer, but it isn't a match for salt.

Cheers, Phil

_________________
Duc in the Bay
1990 750 Sport x2-Rosso Blanko (900ss copy) & Nuovo Nudo (Scrambler project)
1991 907 -mostly stock
2002 ST4s - Lots of mods.


Top
 Profile
Reply with quote
 Post subject: Re: Radiator Fan failed due to parts fatigue.
PostPosted: Tue Feb 02, 2016 6:33 pm
Offline

Joined: Mon Apr 03, 2006 12:00 am
Posts: 371
Location: Northampton UK
model: 907 I.E.
year: 1993
"Muc Off" does the same to aluminium parts too - nasty stuff if you're not careful


Top
 Profile
Reply with quote
 Post subject: Re: Radiator Fan failed due to parts fatigue.
PostPosted: Wed Feb 03, 2016 8:40 pm
Offline
paso grand pooh-bah
User avatar

Joined: Wed Dec 05, 2007 12:35 am
Posts: 1633
Location: Newzealand
model: 906 Paso
year: 1990
This long life is good stuff, I use it on all my rifles , and the degreaser is 3 bucks a can here ( put a long straw on it and its a mini water blaster , and its water soluable so a hose down after is the go


Attachments:
DSC02600.JPG [ 109.4 KiB | Viewed 2193 times ]

_________________
I wish I was young again............Id be heaps smarter than last time
Top
 Profile
Reply with quote
 Post subject: Re: Radiator Fan failed due to parts fatigue.
PostPosted: Wed Feb 03, 2016 11:21 pm
Offline
paso grand pooh-bah
User avatar

Joined: Tue Jul 29, 2008 9:50 pm
Posts: 3189
Location: Hilltown,Pennsylvania
model: 906 Paso
year: 1990
PB Blaster and Seafoam and simple green here WD-40 has its uses but attracts more dust and is on the toxic list

_________________
Ducati,making mechanics out of riders since 1946
There's no problem so bad that a little fixing can't make it worse! : )
If it ain't broke keep fixin it till it is
88 750
90 906
92 907ie


Top
 Profile
Reply with quote
 Post subject: Re: Radiator Fan failed due to parts fatigue.
PostPosted: Thu Feb 04, 2016 8:53 pm
Offline

Joined: Mon Apr 03, 2006 12:00 am
Posts: 371
Location: Northampton UK
model: 907 I.E.
year: 1993
higgy wrote:
PB Blaster and Seafoam and simple green here WD-40 has its uses but attracts more dust and is on the toxic list



All the good stuff is on the toxic list :D
